Elcometer 142 ISO 8502-3 Dust Tape Test Kit / Dust on Blast Steel Assessment Test Kit

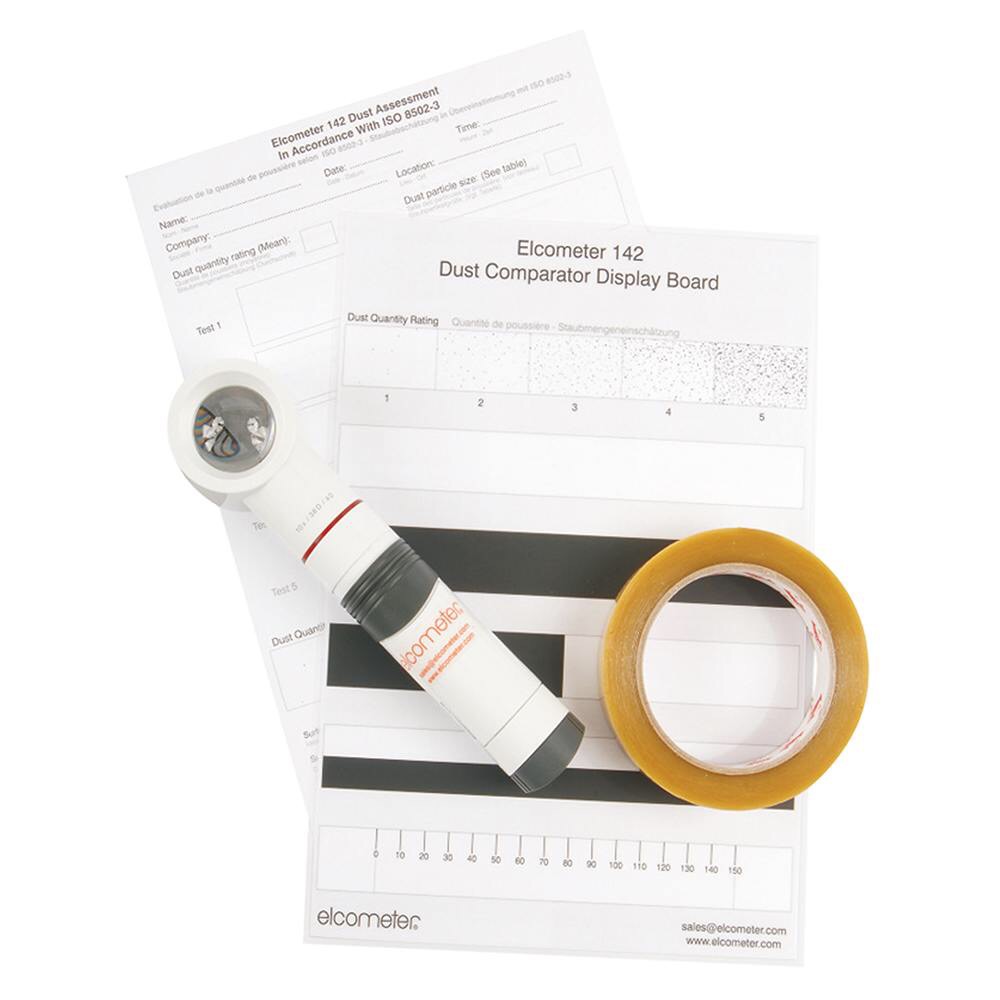

ELCOMETER 142 E142—-1 Measuring Range Chart with dust classes ranging from 0 – 5 with descriptions for accurate class placement, T14219451 Test Record Sheet, T14219454 Display Board, T14223003 Adhesive Tape 1 Roll Pack, T14219525 Dust Assessment Plate, Packing List Microscope with 10x magnifier, 2 batteries (LR14), graticule, adhesive tape to specification ISO 8502-3, comparator display board, dust assessment plate, test record sheets (pack of 25) and operating instructions. The Elcometer 142 Dust Tape Test kit allows assessment of the quantity and size of dust particles on surfaces prepared for painting. Dust on blast cleaned surfaces can reduce coating adhesion, leading to premature coating failure and sub-standard coating finish. Used in conjunction with the Elcometer 145 Dust Tape Roller the kit can be used in accordance with the recommendations of BS EN ISO 8502-3 either as a pass/fail test or as a permanent record of the presence of dust. Supplied in a carry case for use in the field to assess surface cleanliness. iso 8502-3 dust level, dust tape test kit, elcometer 142 dust assessment form, iso 8502-3 pdf free download, surface cleanliness tape test. Dust on blast cleaned steel surfaces may reduce the adhesion of applied coatings and by absorbing moisture may promote the corrosion of the blast cleaned steel. Complies with IS0 8502-3, AS3894.6-C, IMO MSC.215 (82), IMO MSC.244 (83), US Navy PPI 63101-000. ELCOMETER 145 E145—-1 Dust Tape Roller Load Exerted 39.2 to 49.0 N, (8.8 and 11.0 lbF) when spring fully depressed.
