Gaugewel Dial Pistol Calipers

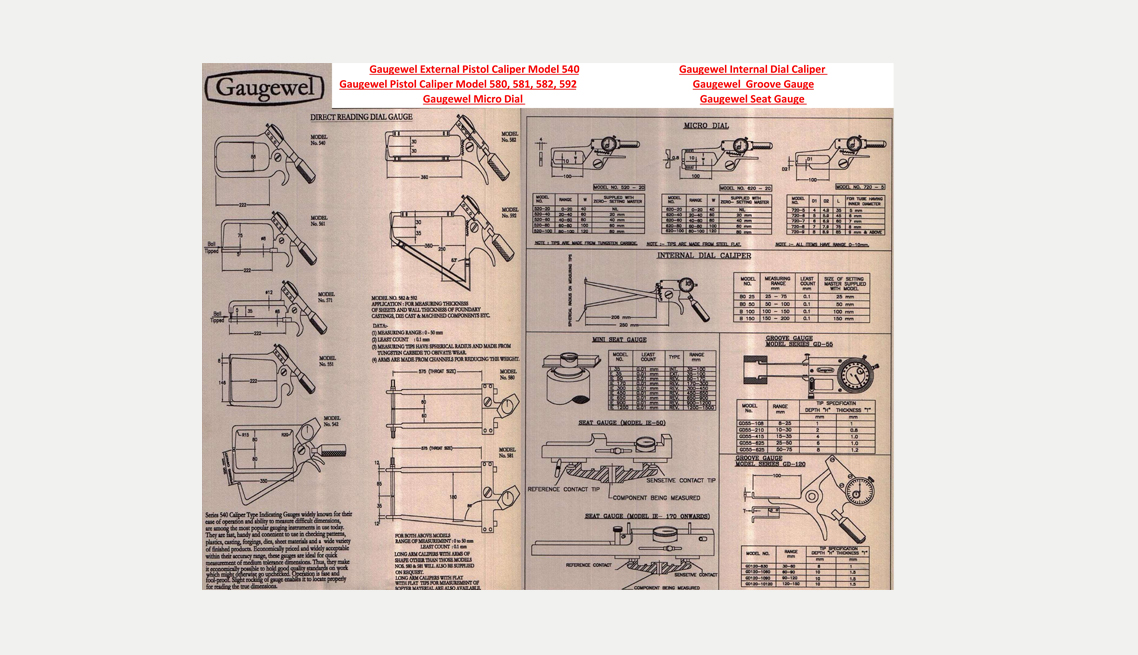

“GAUGEWEL” Dial Pistol Calipers
Gaugewel External Pistol Caliper Model 540 Range 0-50mm 222 mm long arm, carbide tipped, radius 2.5 mm – accuracy, 1 mm. Long. Gaugewel Model 540-50 Range 50-100mm. Gaugewel Model 540-100 Range 100-150mm. Gaugewel Model 540-150 Range 150-200mm. Model 561, accy. ,1mm length of arm 230 mm, range 0-50 mm with one arm of 10 mm dia. H.S. Steel tipped, Sturdy. Directly checking Pipes & Fittings, various machined and non-machined components. Gaugewel Pistol Caliper Model 551. Gaugewel Model 571. Model 542.
Gaugewel Pistol Caliper Model 582 range 0-50 mm, L.C. 0.1mm with length of arm 360 mm Long Arms. H.S. Measuring tips have spherical radius and made from tungsten carbide to obivate wear. Arms are made from channels for reducing the weightFor measuring thickness of sheets and wall thickness of foundry castings, Die cast and machined component etc. Steel tipped with extra long arms. Very sturdy for checking Sheets, Pipes, Structurals etc. Gaugewel Pistol Caliper Model 592 Measuring Range 0-500mm, L.C. 0.1mm Measuring tips have spherical radius and made from tungsten carbide to obivate wear. Arms are made from channels for reducing the weightFor measuring thickness of sheets and wall thickness of foundry castings, Die cast and machined component etc. Gaugewel Model 580 Range 0-50mm L.C. 0.1mm Throat Size 575mm. Gaugewel Model 581 Range 0-50mm L.C. 0.1mm Throat Size 575mm.
Gaugewel Micro Dial Model 520-20 Range 0-20mm L.C. 0.01mm Width 40mm Tips are made from Tungsten Carbide. Gaugewel Micro Dial Model 520-40 Range 20-40mm L.C. 0.01mm Width 60mm Supplies with Zero Setting Master 20mm Tips are made from Tungsten Carbide. Gaugewel Micro Dial Model 520-60 Range 40-60mm L.C. 0.01mm Width 80mm. Gaugewel Micro Dial Model 520-80 Range 60-80mm L.C. 0.01mm Width 100mm. Gaugewel Micro Dial Model 520-100 Range 80-100mm L.C. 0.01mm Width 120mm. Gaugewel Micro Dial Model 620-20 Range 0-20mm L.C. 0.01mm Width 40mm Supplies with Zero Setting Master 40mm Tips are made from Steel Flat. Gaugewel Micro Dial Model 620-40 Range 20-40mm L.C. 0.01mm Width 60mm, Gaugewel Micro Dial Model 620-60 Range 40-60mm L.C. 0.01mm Width 80mm. Gaugewel Micro Dial Model 620-80 Range 60-80mm L.C. 0.01mm Width 100mm, Gaugewel Micro Dial Model 620-100 Range 80-100mm L.C. 0.01mm Width 120mm. Gaugewel Micro Dial Model 720-20 Range 0-20mm L.C. 0.01mm Length 35mm For Tube Having Inner Diameter 5mm. Gaugewel Micro Dial Model 720-40 Range 20-40mm L.C. 0.01mm Length 45mm For Tube ID 6mm. Gaugewel Micro Dial Model 720-60 Range 40-60mm L.C. 0.01mm Length 60mm For Tube ID 7mm. Gaugewel Micro Dial Model 720-80 Range 60-80mm L.C. 0.01mm Length 75mm For Tube ID 8mm. Gaugewel Micro Dial Model 720-100 Range 80-100mm L.C. 0.01mm Length 85mm For Tube ID 9mm & Above.
Gaugewel Internal Dial Caliper Model B 025 Range 25-75mm L.C. 0.1mm Size of Master Setting Supplied with Model 25mm. Gaugewel Model B 050 Range 50-100mm L.C. 0.1mm Size of Master Setting Supplied with Model 50mm. Gaugewel Model B 100 Range 100-150mm L.C. 0.1mm Size of Master Setting Supplied with Model 100mm. Gaugewel Model B 150 Range 150-200mm L.C. 0.1mm Size of Master Setting Supplied with Model 150mm.
Gaugewel Groove Gauge Model GD55-108 Range 8-25mm L.C. 01mm Tip Depth 1mm Tip Thickness 0.8mm. Gaugewel Model GD55-210 Range 10-30mm L.C. 01mm Tip Depth 2mm Tip Thickness 1.0mm. Gaugewel Model GD55-415 Range 15-35mm L.C. 01mm Tip Depth 4mm Tip Thickness 1.0mm. Gaugewel Model GD55-525 Range 25-50mm L.C. 01mm Tip Depth 6mm Tip Thickness 1.0mm. Gaugewel Model GD55-855 Range 50-75mm L.C. 01mm Tip Depth 8mm Tip Thickness 1.2mm. Gaugewel Model GD120-830 Range 30-60mm L.C. 01mm Tip Depth 8mm Tip Thickness 1.0mm. Gaugewel Model GD120-1000 Range 60-90mm L.C. 01mm Tip Depth 10mm Tip Thickness 1.5mm. Gaugewel Model GD120-1080 Range 90-120mm L.C. 01mm Tip Depth 10mm Tip Thickness 1.5mm. Gaugewel Model GD120-10120 Range 120-150mm L.C. 01mm Tip Depth 10mm Tip Thickness 1.5mm.
Gaugewel Seat Gauge Model I 35 / PE 35 L.C. 0.01mm Type Internal Range 35-100mm. Gaugewel Model P 35 / PE 35 L.C. 0.01mm Type External Range 35-100mm. Gaugewel Model IE 50 / PIE 50 L.C. 0.01mm Type Revolution Range -50-170mm. Gaugewel Model IE 170 / PIE 170 L.C. 0.01mm Type Revolution Range 170-300mm. Gaugewel Model IE 300 / PIE 300 L.C. 0.01mm Type Revolution Range 300-450mm. Gaugewel Model IE 450 / PIE 450 L.C. 0.01mm Type Revolution Range 450-650mm. Gaugewel Model IE 650 / PIE 650 L.C. 0.01mm Type Revolution Range 650-900mm. Gaugewel Model IE 900 / PIE 900 L.C. 0.01mm Type Revolution Range 900-1200mm. Gaugewel Model IE 1200 / PIE 1200 L.C. 0.01mm Type Revolution Range 1200-1500mm.
Application – Used for measuring wall thickness of tubes / pipes. It is also useful for taking measurements at locations which are out of reach of micrometers & vernier calipers.
